Jak Max 30T Archer Axe Log Splitter

IN STOCK

$2,899 inc GST

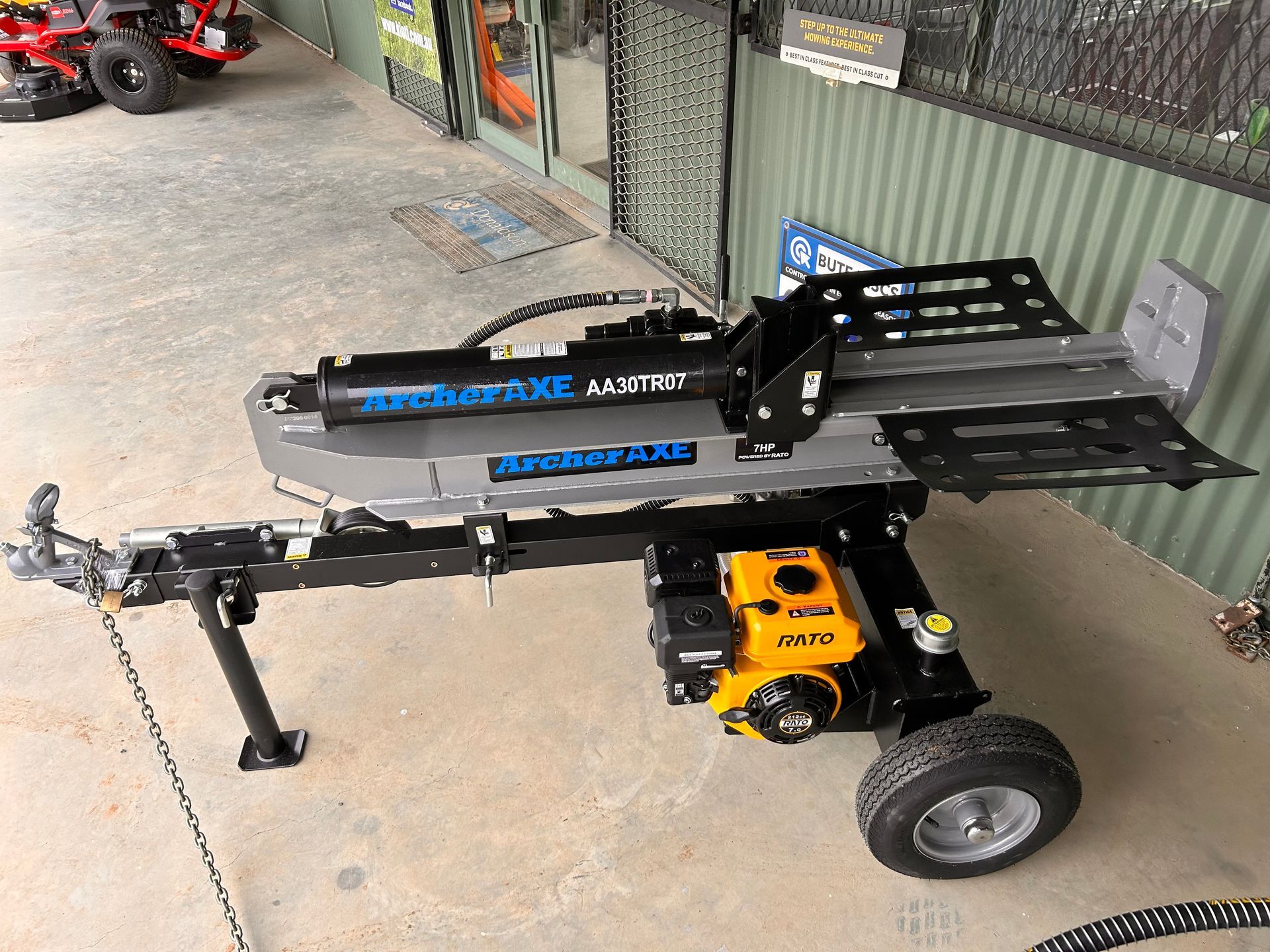

Archer Axe - 30 ton vertical/horizontal log splitter fitted with a RATO R210 7hp engine.

• 2 side log plates
• High quality jockey wheel
• Tow hitch
• 12.2 second cycle time
• 12 month warranty

Technical spec:

 Maximum splitting force: 30 Tons

Engine: 7hp, 212cc RATO R2102

Maximum log length: 25” (635mm)

Cycle time, down & back: 12.2 seconds

Cylinder: 4-1/2” dia x 24” stroke

Pump, two stage: 15 GPM

Wedge, heat treated steel : 9” high

Beam: 9” foot plate

Hydraulic capacity: 22 litres max.3

Valve: Auto return with adjustable detent

Wheels:  D.O.T. approved 16” O.D road tyres

Coupler: 2” ball with safety chains
